DROK USB Load Tester, Electronic Load Test Resistor Module 25W LD25 USB and Type C Interface Discharge Adjustable Constant Current 0.25A-4A Intelligent Temperature Control with Cooling Fan
| Brand: | DROK |
|---|---|
| Productgroup: | Home Improvement |
| Mpn: | 200356_OZ |
| Size: | USB + Type-C port |
| Manufacturer: | DROK |
| Model: | 200356_OZ |

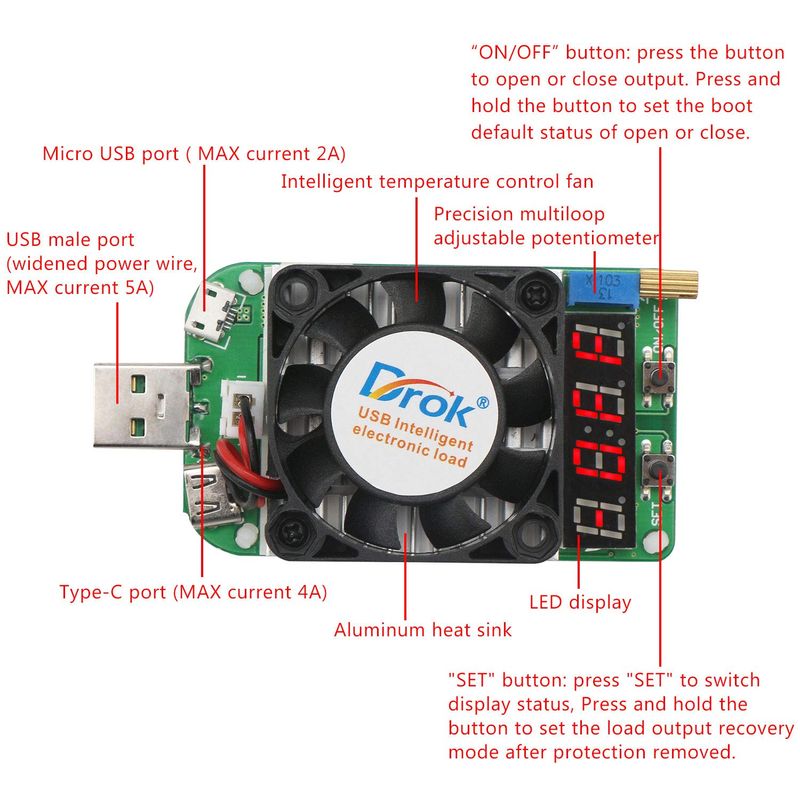

- What is it: it is a USB intelligent temperature control electronic load; with high power, high current, high voltage and intelligent control features.
- Easy Opeartion: set the load to resume normal operation manually or automatically after releasing the protection condition; can freely set the boot state to be on or off by default; 4-bit led digital display; check the load voltage value / current value / power value; intelligent temperature control cooling fan; Precision adjustable potentiometer; Over-voltage protection / overpower protection / over temperature protection.
- Protection Function: OVP overvoltage protection (25V-30V overvoltage protection, digital display OVP, permanent damage after more than 30V); OPP over-power protection (load temperature is greater than 80 °C, the device stops working, digital display OTP); OTP over-temperature protection (power greater than 25W, equipment stops working, digital display OPP).
- Application: can provide 4A, 25V, 25W (3 values can not used over range) constant current test discharge task. The friendly human-computer interface and excellent performance indicators can meet the diverse testing needs. It is suitable for measuring the output current capability of the charger, using the bulk aging test of the charger factory, and measuring the quality of the Micro USB charging cable and the Type-C charging cable.
- Note: the usb tester module has no reverse connection protection, the input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repaired.
- Color: black
- Manufacturer: DROK
- Model Number: 200356
- Package Quantity: 1
- Part Number: 200356
- Size: USB + Type-C port
- Style: Digital
NOTE:
This product has no reverse connection protection, the input polarity cannot be reversed, otherwise, the product is permanently damaged and cannot be repaired.
Parameters:
Rated operating voltage: DC 4-25.0V
Max discharging power: 25W
Rated operating current: 0.25-4.00A (when the fan doesn't work, the minimum constant current is 0.05A)
Fan speed: Oil bearing intelligent temperature control fan, speed 5800±10%RPM
Constant current resolution: ±(1%+3digits)
Heat dispatch method: intelligent temperature control fan +Aluminum heat sink
Working temperature: -10℃~+40℃
Adjustable potentiometer: precision multiloop adjustable potentiometer
Display mode: 4 bit LED tube
Expansion port: Micro USB port, Type-C port

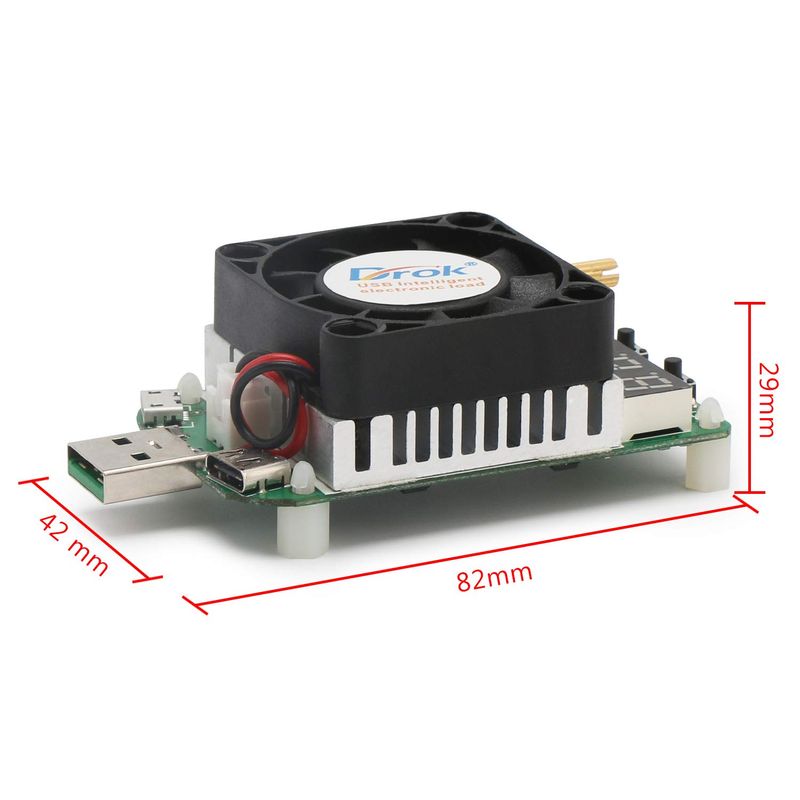

Product size: 84x41x28mm
Application
Assist to test whether the Micro USB cable is good or not
Assist to test whether the Type-C cable is good or not
Assist to test output current capacity of the charger
Package Including:
1x LD25 USB Digital Load Tester
