VKLSVAN 10pcs IR Infrared Obstacle Avoidance Sensor Module Smart Car Robot
- 3.3V to 5V working voltage, comparator USES LM393, labor stability
- This module detects a distance of 2-30 cm and detects an angle of 35 degrees
- The detection range of sensors can be adjusted by potentiometer, low interference, easy to assemble and use
- It can be widely used in robot obstacle avoidance, obstacle avoidance, assembly lines, black and white line tracking and many other occasions
- When the signal module detects a forward obstacle, the green indicator light on the circuit board will light up and simultaneously output a low-level signal from the OUT port. Detection distance can be adjusted clockwise with the potentiometer to increase the detection distance
- Manufacturer: VKLSVAN
- Package Quantity: 10
- Part Number: 1234
Overview:

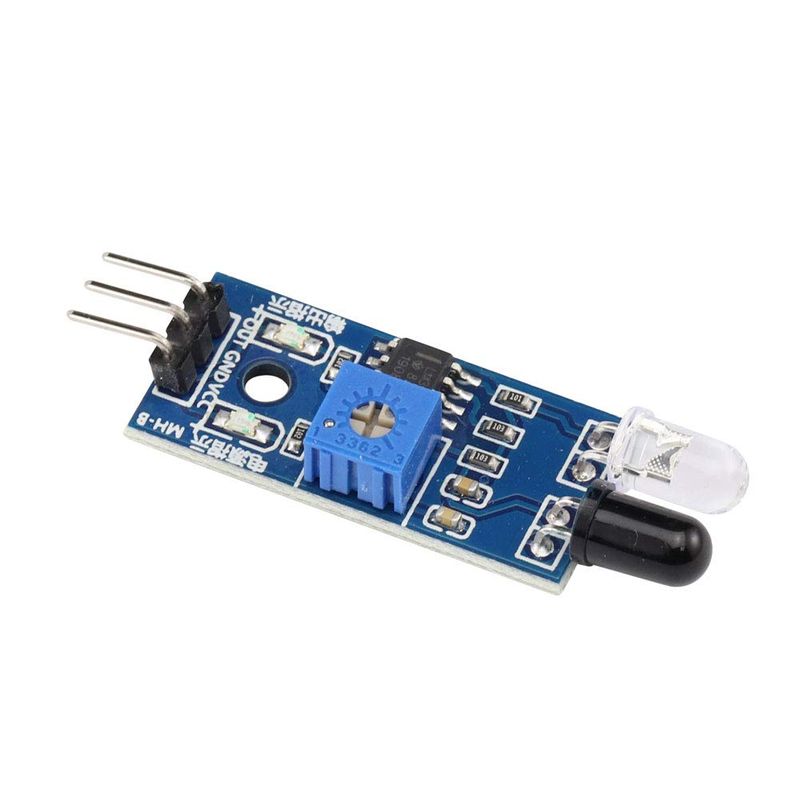

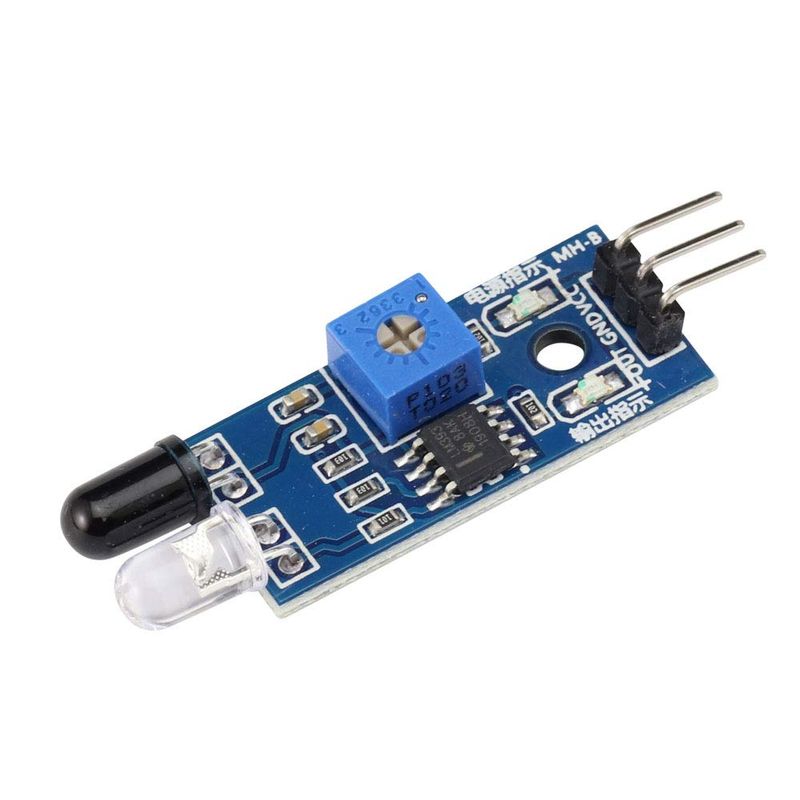

The sensor module adapts to ambient light has a pair of infrared radiation and receiver tubes, the transmitter will emit infrared at a certain frequency, when the direction of the obstacle is detected (reflective surface), the reflected infrared is received by the receiver tube, and the comparator circuit processing will turn on a green light, but the signal output interface output output digital signal (low level signal).
You can adjust the detection distance knob potentiometer, the effective distance range of 2-30cm, and the working voltage of 3.3V-5V. The detection range of sensors can be obtained almost without interference by adjusting the potentiometer.
Easy to assemble and easy to use features can be widely used in a variety of scenes, including robot obstacle avoidance, haundry, line counting, black and white line tracking.
Features:
1, When the module detects an obstacle in front of the signal, the green indicator will light up at the board level, while the OUT port maintains a low signal output, the module detects distance 2-30cm, detection angle 35°, and the distance can be detected. The potentiometer is adjusted clockwise to detect the increased distance. Counterclockwise adjustment potentiometer, reduced detection distance
2. Activated infrared reflection detection of the sensor, target reflectivity and therefore the shape is critical detection distance. Minimum detection distance is black, white, and max. Small objects far away from the small area, larger area from the ground
3. The output port of the sensor module can be directly connected to the microcontroller IO and can drive 5V relay directly. Connection: VCC-VCC; GND-GND; OUT-IO
4, Comparator LM393, Stable
5. The module is 3-5V DC power supply. Red power indicator lights up when power is on.
6, Screw hole 3mm, easy to fix and install;

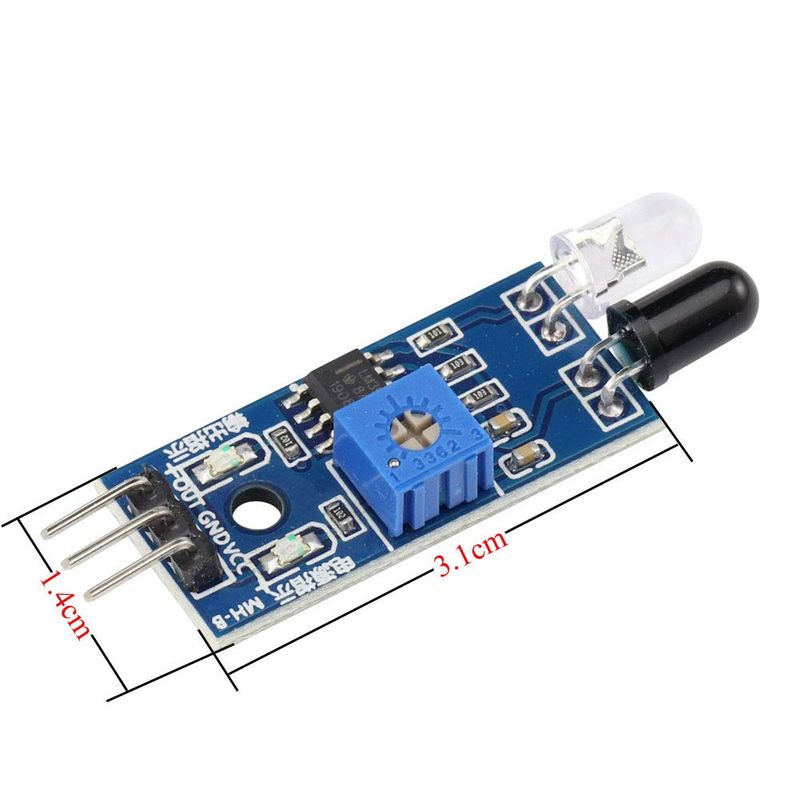

7, Board size: 3.2CM * 1.4CM
8, Each module ships a threshold comparator voltage adjusted by potentiometer, but if not specialistic, the potentiometer cannot be adjusted.

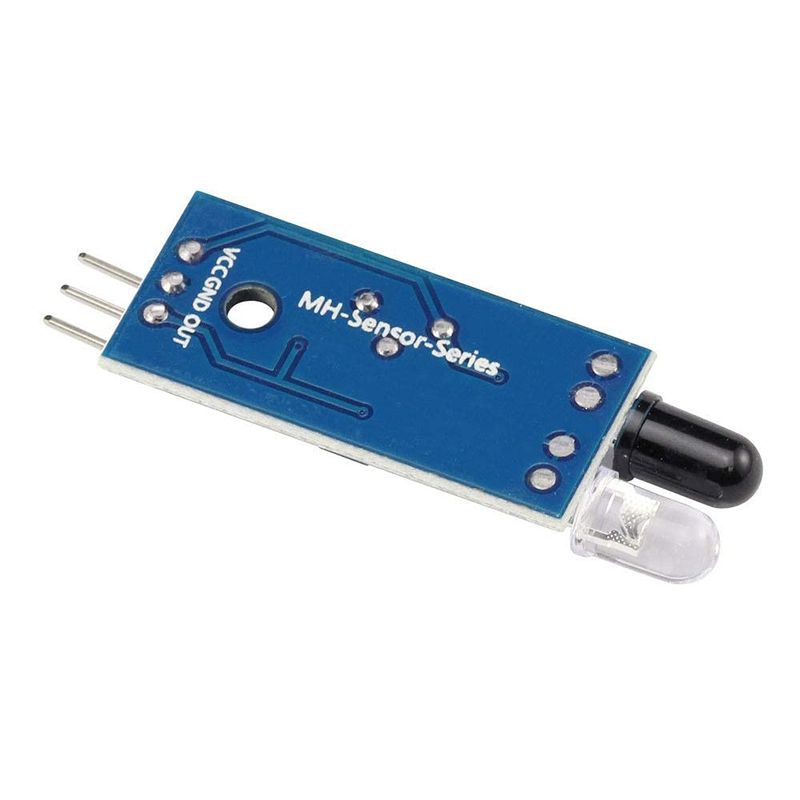

PIN Description:
1 VCC 3.3V-5V external voltage (can be directly connected to 5v and 3.3v MCU MCU)
2 GND GND external
3 OUT Small Board Digital Output Interface (0 and 1)
Package Includes:

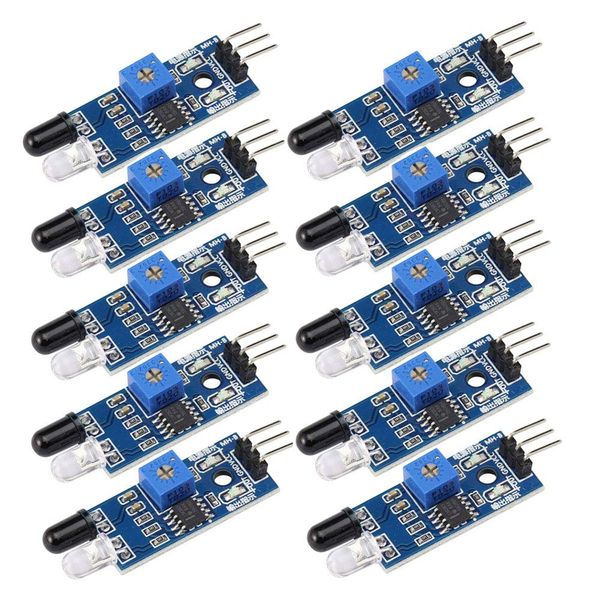

10 X IR Infrared Obstacle Avoidance Sensor Module Smart Car Robot
