Waveshare ESP32-S3 ETH Development Board with PoE Module and Camera Module, 10/100Mbps RJ45 Ethernet Port, Based on ESP32-S3R, Support Wi-Fi and Bluetooth, 240MHz Dual Core Processor

Brand: Waveshare Sold By: Elim-EM
Out of Stock
Ships from Germany Arrives in 10-15 business days

Free Standard Shipping on orders over 89

30-day returns in original condition. Food, medicine & supplements are non-returnable.
Delivery:
01
October2026
-
08
October2026
Waveshare ESP32-S3 ETH Development Board with PoE Module and Camera Module, 10/100Mbps RJ45 Ethernet Port, Based on ESP32-S3R, Support Wi-Fi and Bluetooth, 240MHz Dual Core Processor

Waveshare ESP32-S3 ETH Development Board with P...

$101.09

Description
  • ESP32-S3 ETH Development Board with PoE Function,Supports Wi-Fi, Bluetooth, and Ethernet communication, Onboard TF card slot, camera interface and Pico-compatible header
  • ESP32-S3 Designed for AIoT applications.Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz.Powerful AI Computing Capability & Reliable security features
  • WIFI and BLE 5 support.ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support.Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
  • Two power supply methods.Supports both PoE and USB Type-C power supply
  • for PoE Module, Supports PoE Power Supply.Supports OV2640 / 0V5640 and other mainstream cameras

  • Manufacturer: Waveshare
  • Model Number: ESP32-S3 POE ETH CAM Kit
  • Part Number: ESP32-S3 POE ETH CAM Kit

Features

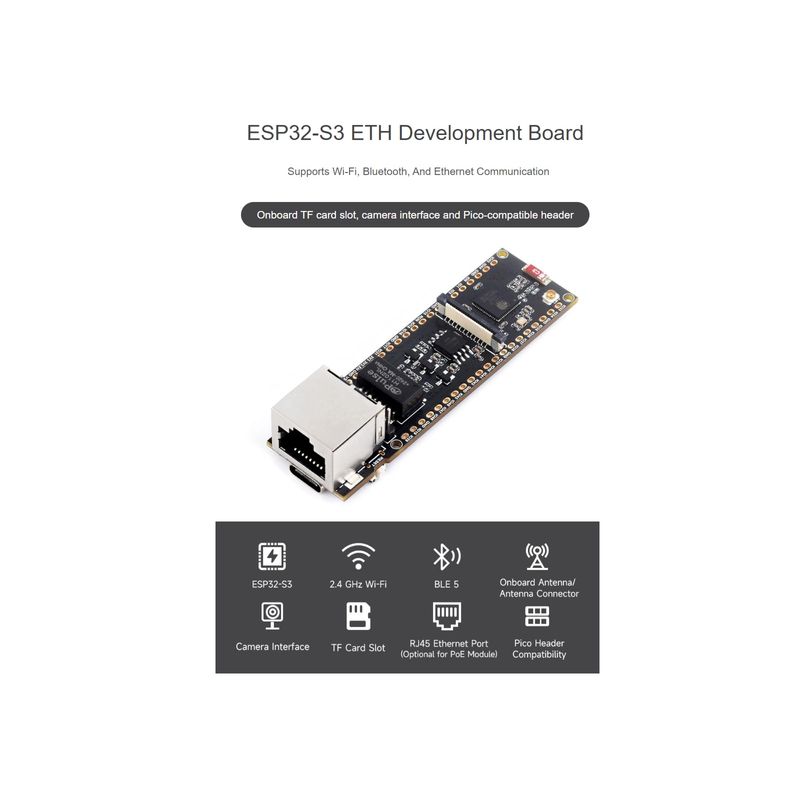

This is an ETH development board based on ESP32-S3R8, supports Wi-Fi and Bluetooth wireless communication, with reliable and efficient wired Ethernet
connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video
capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32,
users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.

Key features include:
Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

Development Resources
https://www.waveshare.com/wiki/ESP32-S3-ETH?Amazon

Package Content
ESP32-S3-ETH x1
PoE module x1
OV2640 camera x1
Screws pack x1
40PIN male pinheader(black) x1
