- Note: the battery must be connected first, then the controller, and the battery must be fully charged when it is connected for the first time!!!! How to install? A: (1) battery ---> (2) solar panel ---> (3) DC load.
- Battery voltage: 12V/24V, automatic charging current: 20A. USB output: 5V/2A. Adjustable charge/discharge parameters, operating modes of the loads adjustable, setting the load timer ON/OFF hours
- Adjustable charging and discharge parameters, adjustable operating modes of loads, setting the load timer on/off hours

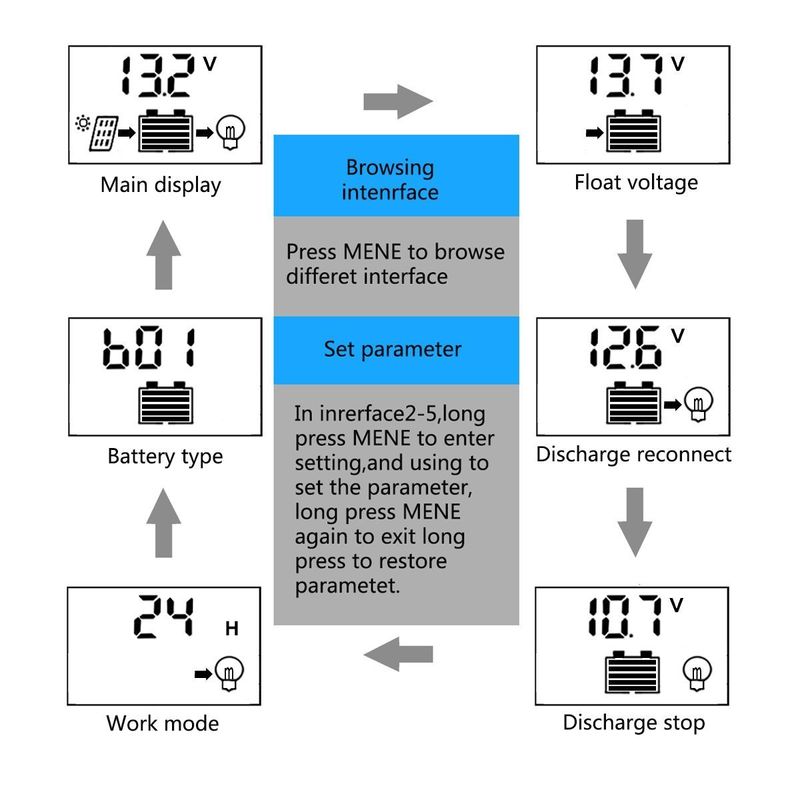

- Multifunctional LCD display, dynamically displays all operating data and working conditions, can be conveniently switched between working mode and parameter configuration.
- PWM charging management increases battery life. Built-in short circuit protection, open circuit protection, reverse protection, overload protection
- Manufacturer: Y&H
- Part Number: RBL-10A-IT
- Size: 10A
- Style: 48A
The RBL solar charge controller is a kind of intelligent and versatile solar charge controller. It can fully meet the photovoltaic requirements for home heating (including the lighting system at home). Can automatically reconfigure the lead acid battery of 12V and 24V, gel
Charge controller features:
1. Integrated industrial microcontroller
2. LCD screen.
3. PWM charging mode.
4. Dual USB Port
5. Built-in short circuit protection.
6. Open switching.
7. Reverse protection.
8. Overcharge protection.
9. Protection against reverse current to double mosfet
Controller parameters:
1. Variable charging voltage (HVD 13.3 V -15 V).
2. Recovery after voltage (LVD 11V-13.5V)
3. Low voltage protection (RVD 9 V-12.3 V).
4. Charging mode: 24 hours.1-23 hours, 0 hours.
5. Battery option (gel, lead acid, flood)

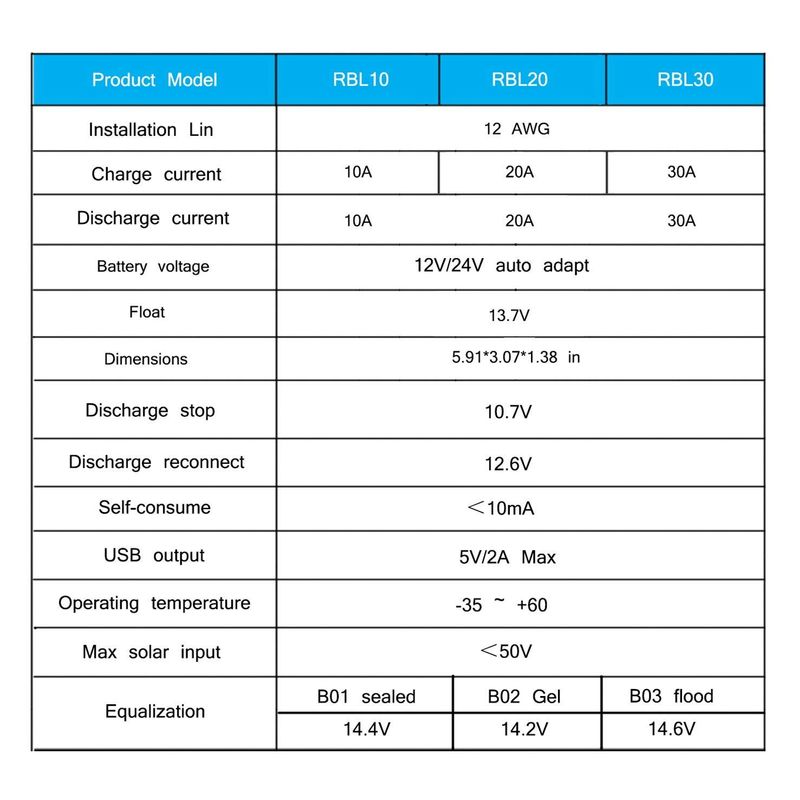

Model: charge controller RBL-10A.
Battery voltage: 12V/24V car
Charging current: 10A
Discharge Current: 10A
Solar input max. :
Balance: B01 sealed 14.4V
B02 Gel 14.2V
B03 Flood 14.6V
Float charging: 13.7V, which is adjustable)
Stop charging: 10.7, the standard for saving the bag).
Reconnect the discharge: 12.6V
USB Output: 5V/3A
Self-catering:
Operating temperature: -35 ~ + 60 °C.
Solar control system connection:
1. Connect the battery to the charge controller plus and less.
2. The photovoltaic module connects more and less to the control.
3. Connect the consumer to the charge controller plus and less.
Note: If you uninstall, the reverse order applies. An incorrect order can damage the controller!
Packaging:
Solar charge controller 1.1 x 10 A.
2. 1 x English user manual.
