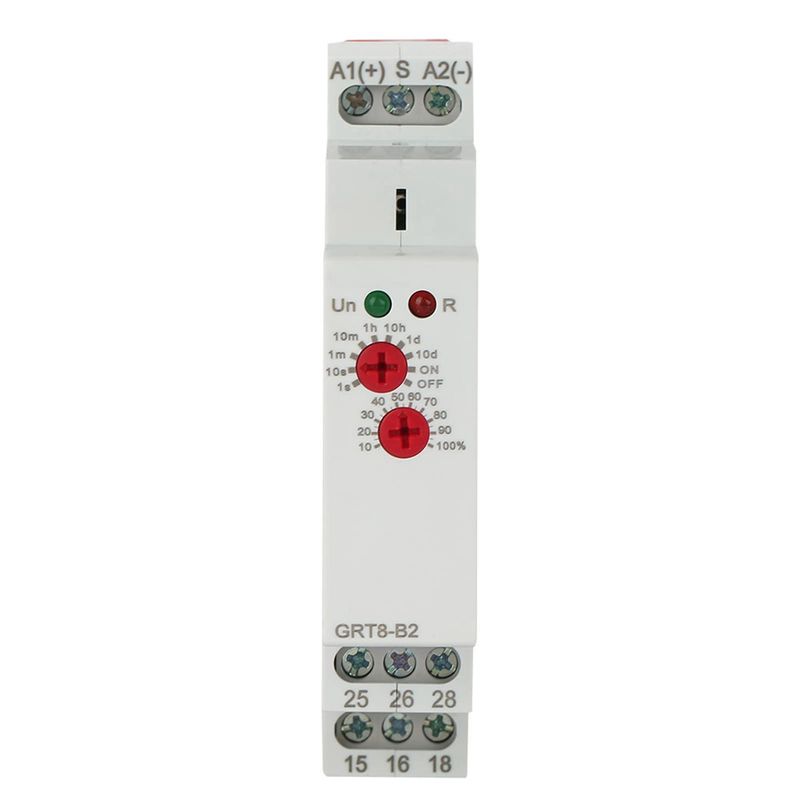

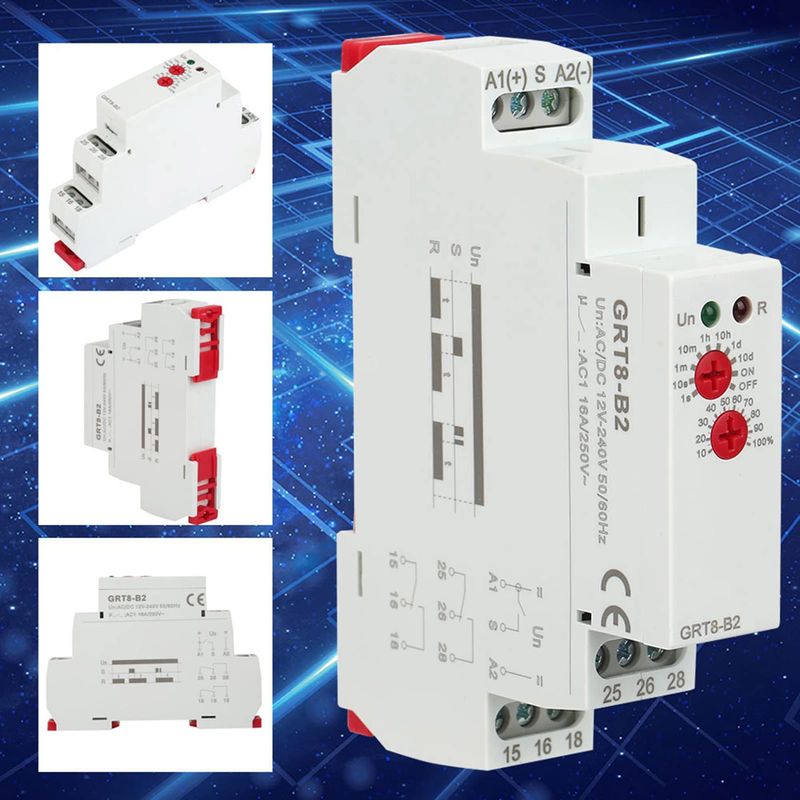

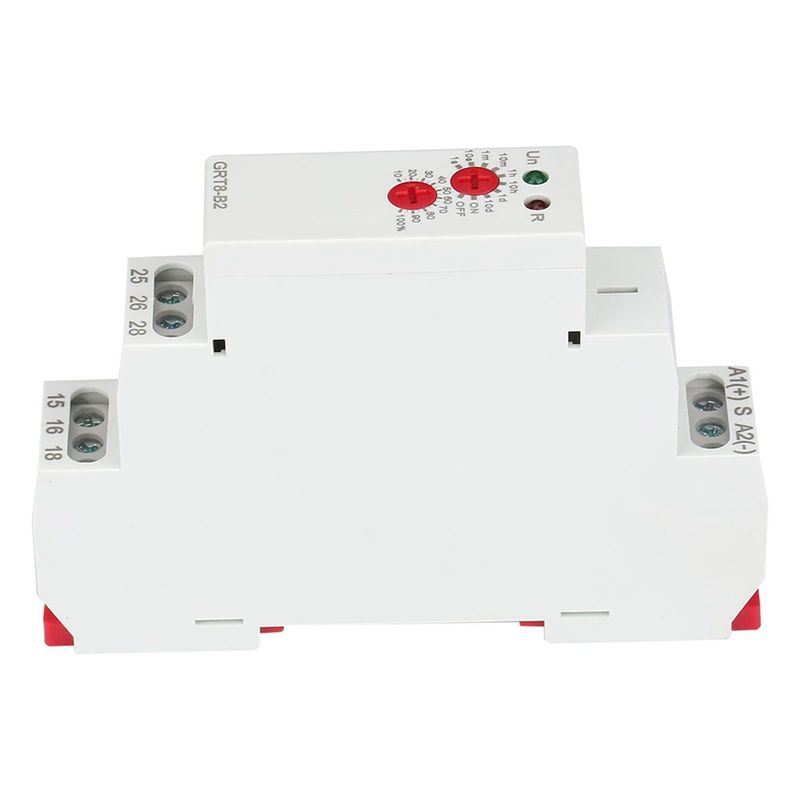

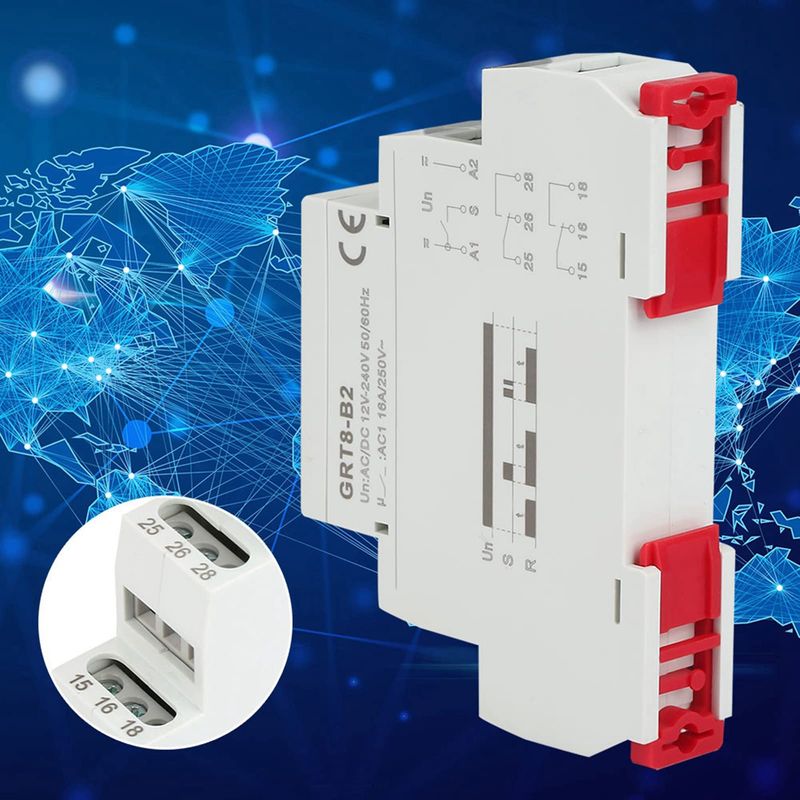

YWBL-WH Din Rail Time Relay GRT8-B2 Mini Single Function Control IP20(AC/DC12V-240V), relay
- Din rail timer---2 function modes are optional: power-on delay and delay disconnection
- Din rail timer---Single-function time relay, delay can be set directly through the panel knob, convenient and intuitive
- Din rail timer---Ultra-wide delay range, 0.1 seconds-10 days can be set
- Din rail timer---Apply to delay on or off the line, such as controlling the power-on time of the heating element, the working time of the pump and the delay of the fan
- Din rail timer---The working status of the relay is indicated by the LED indicator.
- Color: #-02
- Manufacturer: YWBL-WH
- Package Quantity: 1
- Part Number: YWBL-WHo9zgp6axs3-02
- Size: AC/DC12V-240V
Specification:
Condition: Brand New
Model: GRT8-B2
Power Terminal: A1-A2
Rated Control Power Supply Voltage: AC/DC 12-240V (50-60Hz)
Power Consumption: AC 0.7-3W/DC 0.5-1.7W
Power Supply Allowable Range: -15%; +10%
Power Indicator: Green LED
Delay Range: 0.1 seconds-10 days, normally open, normally closed
Setting Method: Knob
Setting Accuracy: 5%
Repeatability Accuracy: 0.2%
Temperature Fluctuation Error: 0.05%℃, at = 2℃
Output: 2 Sets of Conversion Contacts 16A/AC250VAC
Minimum Switching Power: 500mW
Output Relay Indication: Red LED
Mechanical Life: 10000000
Electrical Life (Resistive Load): 1000000
Working Environment Temperature: -20℃-55℃
Storage and Transportation Environment Temperature: -35℃-75℃
Installation Method: 35mm Rail Installation
Level: IP20
Installation Altitude: 2000 Meters
Pollution Degree: 2
Wiring Capacity: 1x2.5mm² or 2x 1.5mm²
Optional AC230, AC/DC 12V-240V
Weight: Approx. 95g / 3.4oz

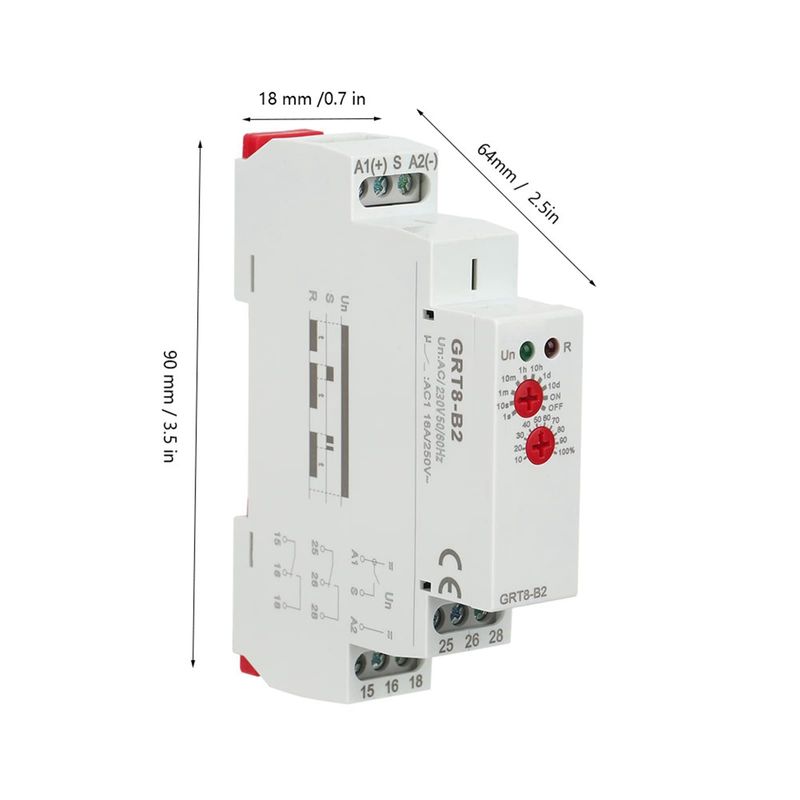

Size: Approx. 90 * 18 * 64mm / 3.5 * 0.7 * 2.5in
Package List:
1 * Time Relay
